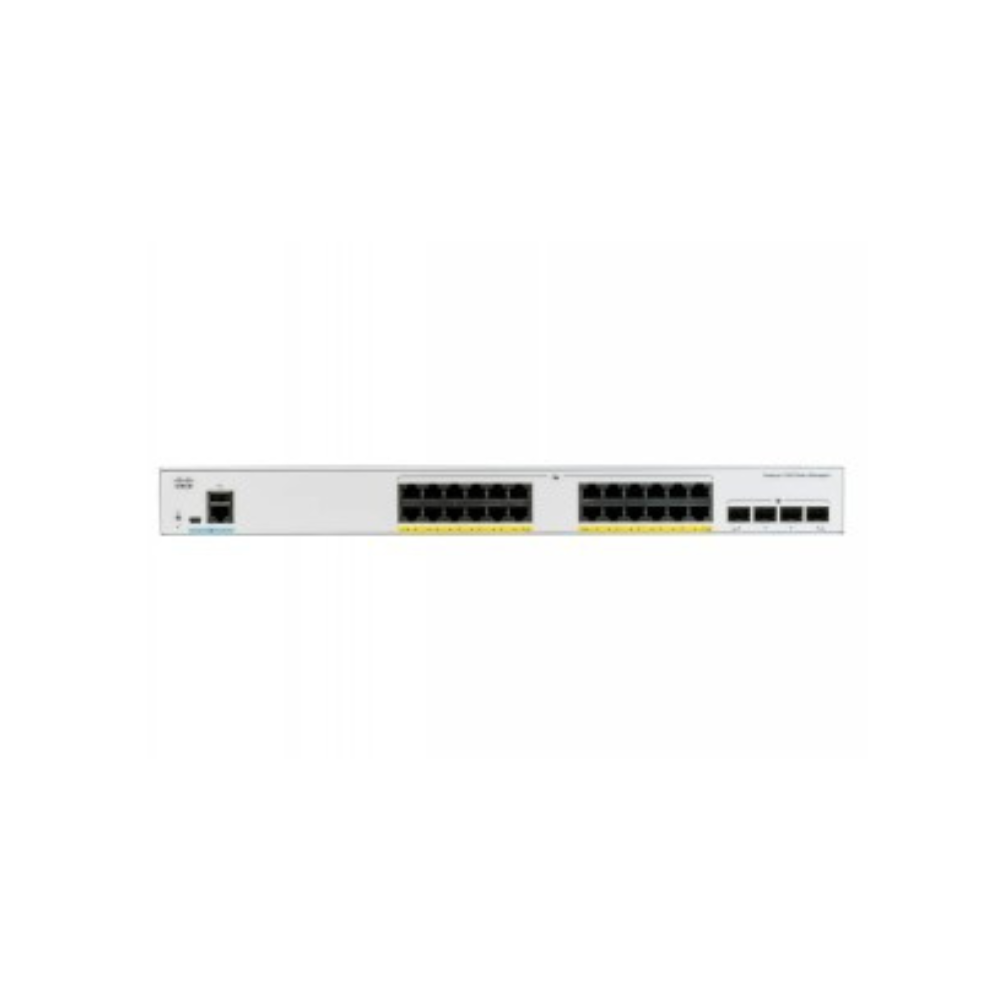

Cisco Catalyst C1000-24T-4X-L L2 Gigabit Ethernet (10/100/1000) Gray Managed Network Switch

Cisco Catalyst C1000-24T-4X-L L2 Gigabit Ethernet (10/100/1000) Gray Managed Network Switch

Brand: autodesk

Cisco® Catalyst® 1000 Series Switches

The Cisco Catalyst 1000 Series Switches are enterprise-class fixed managed Gigabit Ethernet switches designed for small businesses and branch offices. They are simple, flexible, and secure switches, ideal for mission-critical IoT deployments. These switches provide enhanced network security, network reliability, and operational efficiency for SMB organizations.

Additional Product Information

  1. 8, 16, 24 or 48 Gigabit Ethernet ports and 24, 48 Fast Ethernet data ports or PoE+ ports with full-speed forwarding
  2. 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ-45 Combo uplinks (8-port models only) or 4 fixed 10 Gigabit Ethernet Enhanced SFP (SFP+) uplinks in Gigabit Ethernet models, and 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) and 2 RJ-45 Combo uplinks in Fast Ethernet models
  3. Support for PoE+ with a power budget of up to 740W
  4. Management options via CLI and/or an intuitive web interface
  5. Network monitoring using sampled flow (sFlow)
  6. Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) protection
  7. Compact fanless models available with a depth of less than 13 inches (33 cm)
  8. Device management support with wireless access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45 or USB console access
  9. Reliability with higher mean time between failures (MTBF) and support for Enhanced Limited Life Warranty (E-LLW)

Request a Quote

Specifications:

Management characteristics

  • Switch type: Managed

  • Switch bank: L2

  • Quality of Service (QoS): Yes

  • Web-based management: Yes

  • Configuring Location Settings (CLI): Yes

  • ARP Inspection: Yes

  • Traffic classification: Yes

  • MIB Support: Yes

Connectivity

  • Basic switching RJ-45 Ethernet ports quantity: 24

  • Basic Switching RJ-45 Ethernet Port Type: Gigabit Ethernet (10/100/1000)

  • SFP+ module slot quantities: 4

  • Console port: RJ-45/Mini-USB

  • Quantity of USB 2.0 Ports: 1

Network

  • Network standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

  • 10G support: Yes

  • Full duplex: Yes

  • Spanning Tree Protocols (STP): Yes

  • Ethernet LAN: data transfer rate: 100, 1000, 10000 Mbit/s

  • Broadcast storm control: Yes

  • Auto MDI/MDI-X: Yes

  • Link aggregation: Yes

  • VLAN support: Yes

  • Number of VLANs: 4094

Data transmission

  • Switching capacity: 128 Gbit/s

  • Transfer rate: 41.67 Mpps

  • MAC Directory: 16,000 entries

  • Static route: Yes

  • Number of static routes: 16

  • Jumbo Frames Support: Yes

  • Giant frames: 10240

Security

  • DHCP Functions: DHCP snooping

  • Access Control List (ACL): Yes

  • IGMP Entries: 1024

  • IGMP Filtering: Yes

  • Authentication type: RADIUS

  • Authentication: Web Authentication

  • SSH/SSL Support: Yes

  • Loop protection: Yes

  • BPDU filtering/protection: Yes

Multicast Features

  • Support for multicasting: Yes

  • IPv4 multicast entries: 1024

  • IPv6 multicast entries: 1024

Design

  • Product color: Gray

  • Psychics: Yes

  • Market segment: Professional

Representation / Realization

  • Integrated into the processor: Yes

  • Processor model: ARM7

  • Processor frequency: 800 MHz

  • Memory type: DRAM

  • Internal memory: 512 MB

  • Flash memory: 256 MB

  • Mean time between failures: 2,026,793 h

Power

  • AC input voltage: 110 - 220 V

  • AC input frequency: 50 - 60 Hz

  • Socket type: Type C

PoE (Power over Ethernet)

  • Ethernet connection, supporting power supply via this port (PoE): No

Environmental conditions

  • Operating temperature: -5 - 50 °C

  • Non-operating temperature: -25 - 70 °C

  • Operating relative humidity (HH): 5 - 90%

  • Relative humidity level (storage): 5 - 95%

  • Altitude de fonctionnement: 0 - 3000 m

  • Altitude de non fonctionnement: 0 - 4500 m
