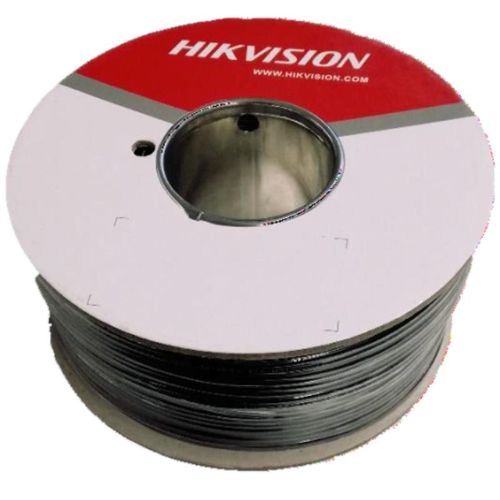

90m, 180m Mini RG59 Coaxial Cable with Power Cable
Brand: HIKVISION
- 90/180 m reliable coaxial cable with power cables
- Excellent transmission performance using solid copper
- Power cable conductor material is bare copper
- Full diameter and full length
- High shielding performance via high braiding density
Request a Quote
Product Datasheet
Specifications:
- Coaxial Cable
- Conductor MaterialBare Copper
- Conductor Wire Gauge26AWG
- Conductor Diameter0.41 ± 0.01mm
- Insulation MaterialFoam PE
- Insulation Diameter2.0 ± 0.1mm
- Tape MaterialAluminum foil
- Tape Lappingbonded
- Braid MateriaCopper Clad Aluminum Magnesium
- Braiding Standard5*16*0.12±0.008mm
- Braiding Density80%
- Impedance75 ohms
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm
- Power Cable
- Conductor MaterialBare Copper
- Conductor Diameter0.41 ± 0.01mm;11*(0.16 ±0.01)mm
- Insulation MaterialPVC(Red, Black,Yellow);Foam PE; PVC(Red, Black)
- Insulation Diameter1.2 ± 0.1mm;2.0 ± 0.1mm
- Jacket MaterialPVC
- Jacket Average Thickness≥0.45mm
- Siamese Cable General
- Length90m;180m
- Diameter3.5x7.0±0.3mm;3.5x7.2±0.3mm
- ColorBlack
- Operating Temperature-15~70ºC
- Storage Temperature-15~70ºC
- Dimensions ( L x W x H )210mm * 210mm * 103mm;260mm * 260mm * 120mm
