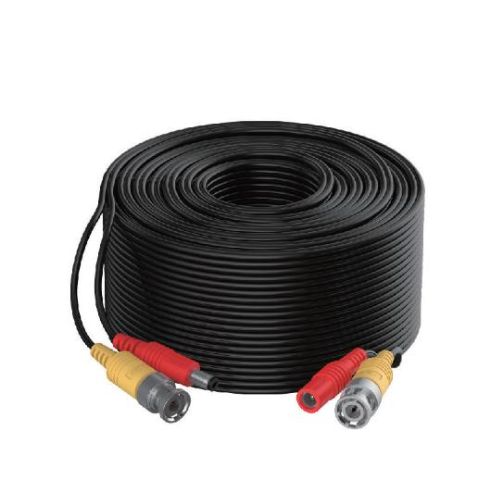

Coaxial cable *1+Power wire *2
Brand: HIKVISION
- Mini RG59 Siamese cable：one coaxial cable and two-core power cord
- Compatible with all CCTV analog systems, transmitting video and power simultaneously, saving wiring and no latency
- Work for 4K/5MP/4MP/1080p/720p, AHD/CVI/TVI/CVBS security CCTV system
- High-purity oxygen-free copper conductor material, featuring excellent transmission performance, easy to install，less construction work
- Flame retardant PVC sheath for weatherproof indoor and outdoor use
- Pre-made cable BNC and DC power connectors, fast connection for camera and back end equipment
- Compliant with RoHS 2.0
Request a Quote
Specifications:
- Coaxial Cable
- Conductor Materialoxygen-free copper
- Conductor Wire Gauge28 AWG
- Conductor Diameter7*(0.12± 0.008)mm
- Insulation MaterialFoam PE
- Insulation Diameter1.6 ± 0.03 mm
- Tape MaterialAluminum foil
- Tape Lappingbonded
- Braid MateriaCCAMX
- Braiding Standard32*(0.12±0.008)mm
- Impedance75 ohms
- Jacket MaterialPVC
- Jacket Average Thickness≥ 0.2mm
- Power Cable
- Conductor MaterialCCA
- Conductor Diameter7*(0.20 ± 0.01)mm
- Insulation MaterialPVC(red,black)
- Insulation Diameter1.0 ± 0.05 mm
- Jacket MaterialPVC
- Jacket Average Thickness≥ 0.2mm
- Siamese Cable General
- Length305m
- Diameter2.8*5.6 ±0.1mm
- ColorBlack
- Operating Temperature-20~60ºC
- Storage Temperature-10~50ºC
