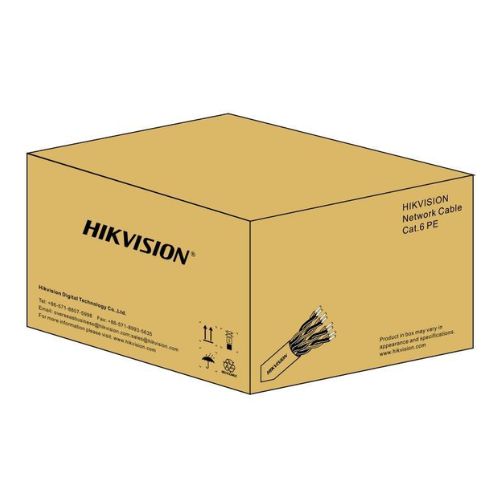

Cat6A S/FTP LSZH Dca
Brand: HIKVISION
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Request a Quote
Product Datasheet
Specifications:
- General
- CategoryCat 6A
- StructureS/FTP
- Fire ResistanceCPR Dca s2 d2 a1
- Usage ScenarioIndoor
- Conduct
- Conductor MaterialSolid-Bare Copper
- Conductor Diameter0.560±0.005 mm 23AWG
- Insulation
- Insulation Diameter1.33±0.05mm
- Sheath
- Sheath MaterialLSZH
- Sheath ColorBlue
- Structure
- Length305 ± 1.5 m
- Rip CordYes
- SeparatorNo
