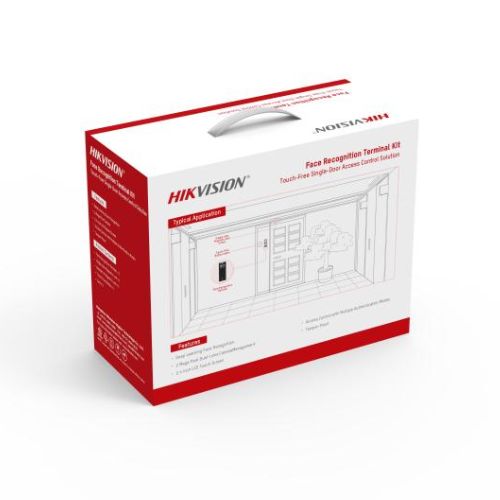

Face Recognition Terminal Kit

Face Recognition Terminal Kit

Brand: HIKVISION

  • DS-K1T321MFWX Face Recognition Terminal
  • 2.4-inch LCD screen, 2 MP lens
  • Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
  • Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
  • Face recognition duration < 0.2 s/User
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the PC web client and mobile web client
  • Supports wired network and Wi-Fi (AP mode)
  • Supports wiring with secure door control unit or card reader via RS-485
  • DS-K4H255S Single-Door Magnetic Lock
  • Magnetic lock supports up to 272 kg (600 Lbs) of thrust
  • Power supply can be 12 VDC or 24 VDC, (default voltage is 12 VDC)
  • Suitable for wooden door, glass door, metal door
  • High strength material，anodized aluminum housing
  • Magnetic lock , completely using electromagnetic suction work
  • Abrasion-proof materials
  • DS-K4H255-LZ Single-Door Magnetic Lock Bracket
  • Bracket for DS-K4H255S
  • L bracket is used for fixed lock body
  • Z bracket is used for suction plate fixed, is equipped with antiskid and structure adjustment
  • DS-K7P07 Exit Button
  • Touchless exit button
  • Stainless steel panel
  • LED indicator status: Green/blue LED indicates working/standby
  • Dimension(L×W×H): 115×70×16mm（4.53"×2.76"×0.63"）

Request a Quote Product Datasheet

Specifications:

  • Face Recognition Terminal/System parameters
  • ModelDS-K1T321MFWX
  • Operating systemLinux
  • Face Recognition Terminal/Display parameters
  • Screen size2.4-inch
  • TypeLCD
  • Resolution320 × 240
  • Face Recognition Terminal/Video parameters
  • Lens× 1
  • Resolution2 MP (video stream: 720 P)
  • Video standardPAL (Default) and NTSC
  • Face Recognition Terminal/Network
  • Wired network10/100 M self-adaptive
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Face Recognition Terminal/Interface
  • Network interface1 RJ-45
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Face Recognition Terminal/Capacity
  • User capacity500
  • Face capacity500
  • Fingerprint capacity3000
  • Card capacity3000
  • Event capacity150,000
  • Face Recognition Terminal/Authentication
  • Face recognition distance0.3 to 1.5 m
  • Face recognition accuracy rate＞99%
  • Face recognition duration＜ 0.2 s
  • Fingerprint recognition duration＜ 1 s
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 5 cm
  • Card reading duration＜ 1 s
  • Face Recognition Terminal/Function
  • Face anti-spoofingSupport
  • Face Recognition Terminal/General
  • Supplement lightWhite light
  • Power supply12 VDC
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 90% (No condensing)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
  • Magnetic Lock/General
  • ModelDS-K4H255S
  • Unlock methodCurrent interruption
  • Maximum holding forceMax. 272 kg (600 Lbs)
  • Power supply12 VDC to 24 VDC, 470 mA to 235 mA
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 95 % (relative humidity)
  • Dimensions

    Lock Body: 250 mm × 28 mm × 48 mm (9.8" × 1.1\" × 1.9\")

    Armature Plate: 180 mm × 38 mm × 12 mm (7.1 × 1.5\" × 0.5\")"

  • 1.9 kg (4.2 lb)
  • Suitable doorGlass door, wooden door, and metal door
  • Shell performanceHard Anodizing Electroplating Operated
  • Lock bodyEco-friendly Zinc Electroplating Operated
  • Armature plateEco-friendly Zinc Electroplating Operated
  • Card/General
  • ModelFM11RF08-M1
  • RAM1 K byte
  • Card reading frequency13.56 MHz
  • Card propertyThin card
  • FunctionRead/write
  • Card reading distance≤10 cm
  • Working temperature-20 °C to 75 °C (-4 °F to 167 °F)
  • Bracket of Magnetic Lock/General
  • Dimensions

    L-bracket: 250 mm × 46 mm × 30 mm (9.8" × 1.8\" × 1.2\")

    Z-bracket: 180 mm × 47 mm × 47 mm (7.1 × 1.9\" × 1.9\")"

  • ModelDS-K4H255-LZ
  • Suitable DoorWooden Door, Glass Door, Metal Door
  • Shell performanceHigh strength aluminum alloy surface sandblasting oxidation
  • 0.5 kg (1.1 lb)
  • Exit Button/General
  • ModelDS-K7P07
  • Power supply12 VDC to 24 VDC
  • Working temperature-20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity0 to 95% (relative humidity)
  • Dimensions115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • 0.13 kg (0.27 lb)
  • MaterialPanel: stainless steel
  • Output contactNO/NC/COM contact
  • Suitable doorHollow door frame (concealed installation)
