Specifications:

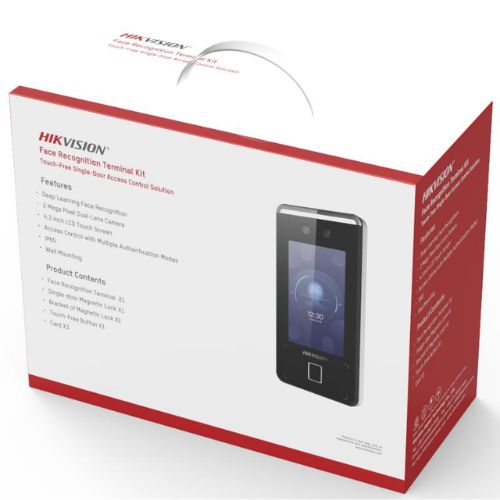

• Face Recognition Terminal/System parameters
• ModelDS-K1T341CMF
• Operating systemLinux

• Face Recognition Terminal/Display parameters
• Screen size4.3-inch
• Operation methodCapacitive touch screen
• TypeLCD
• Resolution480 × 800

• Face Recognition Terminal/Video parameters
• Lens× 2
• Resolution2 MP

• Face Recognition Terminal/Network
• Wired network10 M/100 M/1000 M self-adaptive

• Face Recognition Terminal/Interface
• Network interface1
• Lock control1
• Exit button1
• Door contact input1
• TAMPER1
• RS-4851
• Wiegand1
• USB1

• Face Recognition Terminal/Capacity
• Face capacity1,500
• Fingerprint capacity1,500
• Card capacity1,500
• Event capacity150,000

• Face Recognition Terminal/Authentication
• Face recognition distance0.3 to 1.5 m
• Face recognition accuracy rate＞99%
• Face recognition duration＜ 0.2 s
• Fingerprint recognition duration＜ 1 s
• Card typeM1 card
• Card reading frequency13.56MHz
• Card reading distance0 to 3 cm
• Card reading duration＜ 1 s

• Face Recognition Terminal/Function
• QR code recognitionSupport
• Face anti-spoofingSupport
• Audio promptSupport
• Time synchronizationSupport

• Face Recognition Terminal/General
• ButtonTouch screen
• Power supply12 VDC, 2 A.
• Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity0 to 90% (No condensing)
• Protective levelIP65
• Dimensions172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")
• InstallationSurface mounting

• Magnetic Lock/General
• ModelDS-K4H258S
• Unlock methodCurrent interruption
• Maximum holding force280 kg (617.4 Lbs) linear thrust
• Power supply12 VDC, 340 mA
• IndicatorGreen (work status)
• Surface temperature≤ ambient temperature 20 °C (68 °F)
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity0 to 95% (relative humidity)
• Dimensions

  Lock body: 238 mm × 45 mm × 25 mm (9.4" × 1.8\" × 1.0\")

  Armature plate: 182 mm × 38 mm × 12.5 mm (7.2 × 1.5\" × 0.5\")"

• 2.1 kg (4.6 Lbs)
• Suitable doorWooden door, glass door, metal door, fireproof door
• Shell performanceHard anodizing electroplating operated
• Lock bodyEco-friendly Nickel electroplating operated
• Armature plateEco-friendly Nickel electroplating operated

• Card/General
• ModelFM11RF08-M1
• RAM1 K byte
• Card reading frequency13.56 MHz
• Card propertyThin card
• FunctionRead/write
• Card reading distance≤10 cm
• Working temperature-20 °C to 75 °C (-4 °F to 167 °F)
• Dimensions85.5 mm × 54 mm × 0.8 mm (3.37"× 2.13" × 0.03")
• ＜ 5.6 g (0.2 oz)
• MaterialPVC
• ColorWhite

• Bracket of Magnetic Lock/General
• Dimensions

  L-bracket: 238 mm ×30 mm × 47 mm (9.4" × 1.2\" × 1.9\")

  Z-bracket: 185 mm ×44mm × 100 mm (7.3 ×1.7\" × 3.9\")"

• ModelDS-K4H258-LZ
• Suitable DoorWooden, metal
• Shell performanceHard anodizing electroplated
• 0.77 kg (1.7 lb)

• Exit Button/General
• ModelDS-K7P03
• Power supply12 VDC, 40 mA (standby)/70 mA (working)
• Current rating1 A@30 VDC
• Working temperature-20 °C to 50 °C (-4 °F to 122 °F)
• Working humidity0 to 95% (relative humidity)
• Dimensions86 mm × 86 mm × 25.7 mm (3.39" × 3.39" × 1.01")
• 0.2 kg (0.44 lb)
• MaterialStainless steel
• Output contactNO/NC/COM contact
• Aging testAlready passed 1 million times aging test
• Suitable doorAll kinds of narrow doorframes
