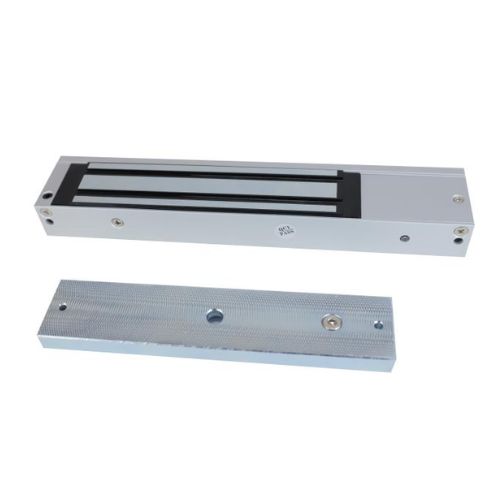

Value Magnetic Locks

Value Magnetic Locks

Brand: HIKVISION

  • Magnetic lock supports up to 272 kg (600 Lbs) of thrust
  • Power supply can be 12 VDC or 24 VDC, (default voltage is 12 VDC)
  • Suitable for wooden door, glass door, metal door
  • High strength material，anodized aluminum housing
  • Magnetic lock , completely using electromagnetic suction work
  • Abrasion-proof materials

Request a Quote Product Datasheet

Specifications:

  • General
  • Power supply12 VDC to 24 VDC, 470 mA to 235 mA
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 95 % (relative humidity)
  • Dimensions

    Lock Body: 250 mm × 28 mm × 48 mm (9.8" × 1.1\" × 1.9\")

    Armature Plate: 180 mm × 38 mm × 12 mm (7.1 × 1.5\" × 0.5\")"

  • 1.9 kg (4.2 lb)
  • Material

    Shell: hard Anodizing Electroplating Operated

    Lock Body: eco-friendly Zinc Electroplating Operated

    Armature Plate: eco-friendly Zinc Electroplating Operated

  • Door typeGlass door, wooden door, and metal door
  • ThrustMax. 272 kg (600 Lbs)
  • Magnetic Lock/General
  • Unlock methodCurrent Interruption
