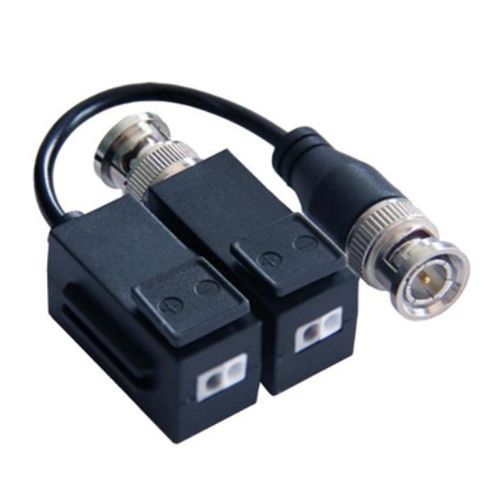

Video Balun

Brand: HIKVISION

Real-time transmission over UTP cat5e/6
Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
Low crosstalk and noise suppressions
Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
Wave Filter Design, Anti-Static Design
60 dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing

Request a Quote Product Datasheet

Specifications:

Properties
Transmission Signal1 channel
Transmission DistanceMax 350m
Category TypeUTP CAT 5E/ 6

Video Transmission Properties and Port
Coaxial Video ConnectorBNC-M
Twisted-pair Video ConnectorTool-less push-pin terminal block
Compatible FormatHD-TVI/TVI/AHD/CVBS
Resolution720P/960P/1080P/3MP/4MP/5MP/8MP
Ant-interference>60dB

Protection
ESD
Contact discharge electricity level3
air discharge electricity level3
Per: IEC61000-4-2
Coaxial Cable Connector2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector
2KV(different-code),
2KV(common-code)
Per:IEC61000-4-5

Impedance
BNC Male75 ohms
UTP Cable100 ohms

Physical Properties
ShellABS engineering plastic
ColorBlack
Dimensions ( L x W x H )175.3*15.4*17.8mm (BNC connector & cable excluded)
Weight39 g

Stability
MTBF>10000 h

Environmental
Operating Temperature-20º ~55º C
Storage Temperature-40º ~ 150º C
Humidity0~95% (non-condensing)
